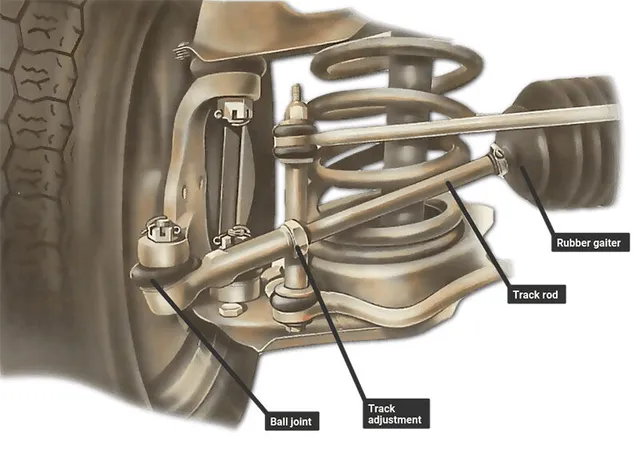

The tie rod end is an important part of the steering system of the vehicle, connecting the steering rack to the steering knuckle on the wheel. They facilitate steering by converting the rotating motion of the steering rack into the lateral motion of the wheels, allowing the vehicle to change direction smoothly.
There are two types of rod ends: inner end and outer end. The inner tie rod end is connected to the steering rack and the outer tie rod end is connected to the inner tie rod end to the steering knuckle. This linkage enables precise steering control and alignment, which is essential for vehicle stability and handling.
Because of its critical role, the end of the tie rod will be subjected to great stress and wear during operation. Therefore, their manufacturing process is essential to ensure strength, durability and reliability. Forging, especially drop forging, is the preferred method for producing tie rod ends in the automotive industry.
Materials and Forging Process
Material choice
Tie rod ends are usually made of a strong material, such as AISI 1045 steel. This steel has good tensile strength and toughness and is well suited to withstand forces and wear in steering systems.
Forging Process
(1) Heating: The selected steel is heated to a specific temperature to enhance its ductility.
(2) Forging: In drop forging (especially closed die forging), heated steel is placed in a die cavity shaped like the end of a tie rod. High pressure is applied to shape the steel mold into the desired shape, ensuring precise size and arrangement of the grain structure.
(3) Trimming and finishing: Excess material (flash) is trimmed away and the part goes through a finishing process such as grinding or polishing to achieve the desired surface finish.
(4) Heat treatment: The end of the forged tie rod is heat treated to optimize its hardness and strength and ensure that it meets performance requirements.
The Advantages of Forging Tie Rod Ends
If you want the rod end to have high quality and performance, you need to choose the right manufacturing process. Forging has always been the first choice for manufacturing tie rod ends, and the advantages of forging tie rod ends are as follows.
In the forging process, high pressure and temperature are used to shape the metal so that its grain structure is aligned with the shape of the part. This results in exceptionally strong and wear-resistant rod ends. Compared to other manufacturing methods, forged rod ends offer exceptional durability, enabling them to withstand the extreme stresses and frictions encountered in vehicle steering systems.
Forging allows the production of parts with high dimensional accuracy and consistency. In closed die forging, the heated metal is forced into a die cavity that closely matches the shape of the final part. The process ensures that the rod ends are manufactured to precise dimensions and require minimal additional processing. Therefore, they are perfectly suited to the steering system of the vehicle.
Forged tie rod ends increase strength and accuracy, helping to improve the overall reliability of the vehicle steering system. They keep the wheels positioned so that the driver can safely steer the vehicle.
Despite the higher initial setup costs, forging is cost-effective for mass production due to reduced material waste and minimal secondary operations. It achieves long-term savings by enhancing part durability and reliability.
Sum up
Through carefully selected materials and advanced forging processes, the rod ends provide stable performance in a variety of driving conditions. From heating, forging, trimming and finishing to the final heat treatment, each step is strictly controlled to ensure the quality and performance of the parts, making the forged rod end perform well in practical applications, providing a safer and smoother driving experience for the driver.
