Hardness Testing in Forging Processes

In forging, heat treatment plays a crucial role in enhancing the performance of forged parts. The effectiveness of heat treatment directly affects the physical properties of the workpieces, especially hardness, which is essential for their performance in real applications. Therefore, hardness testing has become an indispensable part of the forging process. Hardness measures a material's ability to resist deformation and wear, typically assessed through standardized testing methods. These tests allow us to accurately determine whether the forged parts meet design specifications, ensuring their reliability and safety under working conditions.

The Relationship Between Heat Treatment and Hardness

During the forging process, heat treatment is often necessary to eliminate processing stresses, adjust the microstructure, and refine the grain size of the forged pieces. Methods such as annealing, normalizing, quenching, and tempering can significantly improve the mechanical properties of materials. These heat treatment processes not only enhance the hardness of forged parts but also increase their toughness and wear resistance. For example, quenching can result in high hardness and excellent wear resistance, while tempering improves toughness and helps prevent brittle failure.
After heat treatment, the hardness of the forged part can change significantly, making hardness testing particularly important. This ensures that the forged part meets design requirements and assesses the effectiveness of the heat treatment process. Depending on the heat treatment method used, the target hardness values may vary, so it's essential to plan the heat treatment process while considering the requirements for hardness testing.

The Necessity of Hardness Testing

Hardness testing primarily serves to verify that forged parts meet relevant standards and user specifications. Through hardness testing, we can quickly identify any defects or inconsistencies in the material, helping to avoid issues during subsequent processing or use. Common hardness testing methods include Brinell, Rockwell, and Vickers hardness tests. Selecting the appropriate hardness testing method based on material characteristics and usage requirements effectively ensures the quality of forged parts.

Hardness Testing Methods

As heat treatment processes are implemented, hardness testing methods become a key aspect of ensuring the quality of forged parts. Hardness reflects not only the wear resistance and strength of materials but also directly influences the reliability and safety of forged parts during use. Therefore, choosing the right hardness testing method is crucial.

1. Brinell Hardness Tester

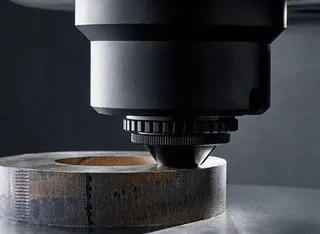

The Brinell hardness tester is widely used for hardness testing of forged parts and is suitable for most forged components. The testing process involves pressing a steel ball or hard alloy ball of a specific diameter into the sample surface under a designated load, measuring the diameter of the indentation, and calculating the Brinell hardness value (HBW). This method is generally suitable for larger and thicker workpieces. For smaller forged parts, tabletop Brinell hardness testers can be used, while portable Brinell hardness testers are typically used for larger components. Brinell hardness testing provides a comprehensive hardness assessment, although its applicability is limited for very hard or thin materials.

2. Rockwell Hardness Tester

The Rockwell hardness tester is another common tool for hardness testing, especially suitable for smaller and thinner parts. This method tests the sample's hardness by applying different loads, with the results usually expressed in Rockwell hardness values (HR). The Rockwell hardness test is quick and straightforward, making it particularly suitable for rapid testing on production lines. For larger or heavier forged parts, portable Rockwell hardness testers can be used to ensure accurate measurements on-site.

3. Vickers Hardness Tester

The Vickers hardness test is applicable to various metal materials, including those with significant hardness differences in forged parts. This method employs a diamond indenter pressed into the sample surface under a specified load, measuring the diagonal length of the indentation to calculate the Vickers hardness value (HV). The primary advantage of the Vickers hardness test is its wide testing range, covering both soft and hard materials. However, due to lower detection efficiency and higher technical requirements, it is typically performed in laboratories.

4. Shore Hardness Tester

The Shore hardness test is mainly used for testing plastics and rubber materials but can also be applied to forged parts in certain cases. This method measures the material's resistance to indentation by a hard object, with results expressed in Shore A (HA) or Shore D (HD) values. Shore hardness testing is often used to assess a material's elastic deformation capability, making it an important supplementary testing method.

5. Leeb Hardness Tester

The Leeb hardness tester is a portable hardness testing tool suitable for on-site testing. This method evaluates hardness by measuring the rebound height of a forged part's surface, with results convertible to other hardness units. The advantages of Leeb hardness testing lie in its portability and speed, making it ideal for immediate assessments on the production floor.

Testing Standards and Requirements

Hardness testing of forged parts typically follows relevant standards and user technical requirements. Each testing method should be conducted under specified conditions to ensure accuracy and repeatability. During hardness testing, the surface of the forged part must be well-polished to enhance reliability. Additionally, the hardness distribution of forged parts may vary due to processing methods or material characteristics. Therefore, it is advisable to conduct multiple point tests on each forged part, especially in areas prone to stress concentration and deformation. This comprehensive approach helps ensure a thorough understanding of the hardness characteristics of the forged parts, guaranteeing their performance in actual applications.

Conclusion

Hardness testing of forged parts is a vital step in ensuring their quality and performance. By selecting appropriate hardness testing methods and establishing a scientific testing process, we can effectively enhance the overall mechanical properties of forged parts and ensure their reliability in subsequent processing and actual use. Hardness testing is not only an important aspect of the production process but also a critical component of product quality control. As technology advances and industrial demands grow, the future of hardness testing methods will become more diverse and precise, providing more reliable guarantees for the quality management of forged parts.
